DockPanel ExampleUse the DockPanel control to align sub-controls to the top, bottom, left or right of an area.
WPF
This page was last reviewed on Sep 27, 2022.
DockPanel. A DockPanel helps align controls to edges. We add a control to it, and then can use the Dock property to align to the top, bottom, left or right.
Getting started. Add a Grid to a WPF Window, then a DockPanel and 3 nested buttons in it. I adjusted the HorizontalAlignment of the DockPanel to stretch.
Example code. I set the "Cat" button to be docked on the left. The middle button, "Dog," is left with the default: it sets against the Cat button.
And The third button, with the name "Squirrel," is docked to the right of the DockPanel.
Dock The DockPanel.Dock attribute handles four values: top, bottom, left and right. Only one can be specified.
Example markup, XAML:
<Window x:Class="WpfApplication7.MainWindow" xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" Title="MainWindow" Height="350" Width="525"> <Grid> <DockPanel HorizontalAlignment="Stretch" LastChildFill="False" Margin="0" VerticalAlignment="Top"> <Button Content="Cat" Height="100" VerticalAlignment="Top" Width="75" DockPanel.Dock="Left"/> <Button Content="Dog" Height="100" VerticalAlignment="Top" Width="75"/> <Button Content="Squirrel" Height="100" VerticalAlignment="Top" Width="75" DockPanel.Dock="Right"/> </DockPanel> </Grid> </Window>

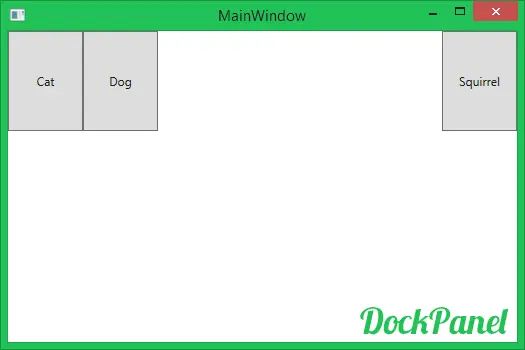

Window notes. The buttons are attached to their respective edges of the DockPanel. And if you run a program like this one, try resizing the Window (by dragging an edge).
Info The 3 Buttons will remain at the edges—this is a consistent visual effect.
Important The HorizontalAlignment property of the DockPanel makes the DockPanel expand to the window size.
Summary. WPF controls offer the ability to quickly construct useful programs. Many programs will have no need for a DockPanel. But this need occasionally arises.
